Program On-Site Survey

On-Site Survey
On-Site Survey



On-Site Survey is a flexible system for recording surveys of buildings on mobile computers. Instead of recording dimensions on paper using a pen, all data is directly entered on-site in a mobile computer:

  • The geometry is reproduced on-site by the entry of measured values of ground plans, room elements and interior objects.
  • The building can be documented with the help of images, spoken comments, videos and sketches.
  • Additional data which describe the equipment of buildings can be freely configured.
  • Inconsistencies in the survey on-site are directly detected and corrected – thus additional site inspections are not necessary anymore.
  • If required, existing plans can be used.
  • Leica lasers with bluetooth module allow a wireless transfer of measured values.



On-Site Survey is a quality assurance system for data capture:

  • Application advantage: On-Site Survey includes the recording of geometries, building conditions and additional information.
  • Increased accuracy: On-Site Survey ensures the completeness and accuracy of building data and provides traceable and verifiable results.

Reduced time: On-Site Survey decreases the time required from the recording of building data on-site to the development of drawings in the office.



The following video will present On-Site Survey to you. Set your PC to full screen and 720p, if you have a fast internet connection.

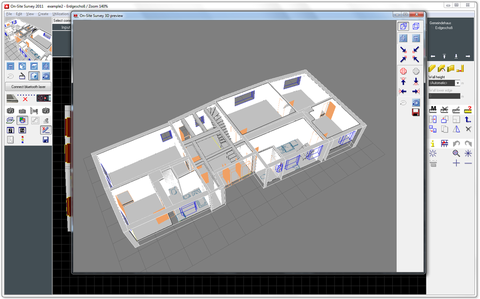

3D control view of a survey project
3D control view of a survey project

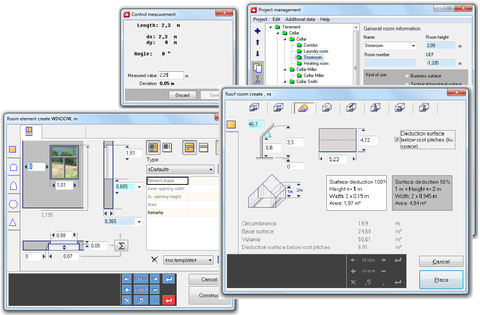

Dialogs for roof areas, windows, project management and check measurement
Dialogs for roof areas, windows, project management and check measurement

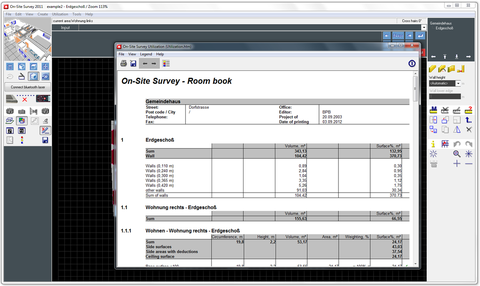

The room book is one of the numerous survey reports.
The room book is one of the numerous survey reports.

Hints Tablet PC



We recommend to exclusively use On-Site Survey on tablet pcs that can be switched to pen only operating. Desktop programs generally and specially On-Site Survey can be used more accurate and comfortable with pen operating.

On-Site Survey can’t be used on IPads, Android or Windows RT.

We are currently testing the devices Dell Latitude 10 Standard and the Samsung ATIV smart PC.





Hints Laser with Bluetooth interface



The following devices were successfully tested to transfer measured data via Bluetooth:

Current devices: Leica DISTO D3a BT, Leica DISTO D8

Previous devices: Leica DISTO PLUS, Leica DISTO A6

New devices: Leica DISTO D510 (currently not usable with Windows 8)

An alternative for directly establishing a link out of On-Site Survey is the program “DISTOtransferPC”. If you use this program you will suffer under comfort losses (no voice output for measured values, no automatic switching to the next input field). We inform you constantly about the actual developments.

PDF - 0.3 MB
PDF - 0.3 MB
Setup with activation = full version, without activation=demo version for 30 days and 20 elements - 89 MB
Setup with activation = full version, without activation=demo version for 30 days and 20 elements - 89 MB

On-Site Survey professional*
On-Site Survey professional*

Complete program with all functions in English language.





We will deliver version 2011. An update to version 2014 is possible free of charge for all purchases from 1 June 2012.



If you like to order from outside Germany, please contact us.



Note: This is not the final price! The height of the actual price depends on whether you have a VAT/TAX number that is valid in germany and the current exchange rate.

1.075,00 €
Add to Cart

Final price, free shipping to selected countries

Free shipping to the following countries: Albania, Andorra, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Serbia and Montenegro, Switzerland , Croatia, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Montserrat, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Slovakia, Slovenia, Spain, Svalbard and Jan Mayen, Sweden, Turkey, Ukraine, United Kingdom, Vatican City Show more Show less

  • Available
  • 1 day delivery time, electronic delivery Download+Serial Number1

Buy one license – activate and use it twice without additional costs.

Version Net Price Gross Price
2010 195,00 € 232,05 €

2008 or older

495,00 € 589,05 €

Please look at the note above before you order an update.

If you already use maxmess-software products, get the latest information about updates on our download page.
